1、 Structural features

2、 Overview
The ST-11 PN class analyzer is an instrument that uses the principle of rectification to identify the type of semiconductor conductivity, and also has the function of testing heavy doping.

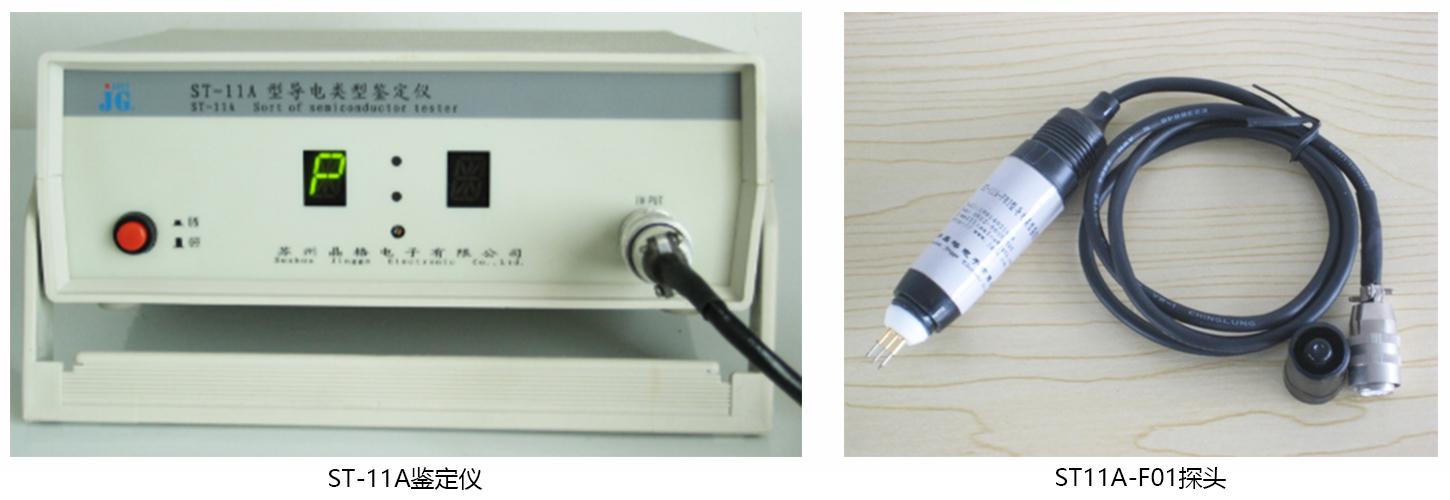

Instrument set composition: This instrument consists of components such as the host and probe. The conductive type P or N is displayed by the digital tube, and whether it is re doped is indicated by the LED and buzzer.
Advantages and features: The key components of this instrument adopt dedicated integrated circuits and adopt high-quality SMT technology. The instrument has the characteristics of wide identification range, high sensitivity, good stability, and convenient use. There are four forms of probes that can be selected according to needs. The probe adopts a plug and play type for easy replacement. This instrument is suitable for semiconductor material factories, semiconductor device factories, research institutions, universities, and other occasions for PN type identification and re doping discrimination of semiconductor materials.
3、 Technical parameters
1. PN identification scope: ρ= 0.01-10000 Ω cm
Distinguishing boundary for heavy mixing: ρ= 0.01~0.2 Ω cm adjustable (initial setting is 0.1 Ω cm)
2. Measurable semiconductor material size:
PN identification: contactable surface Smin=3mm * 5mm
Heavy mixing discrimination: The contactable surface Smin=3mm * 5mm (three needle probe or clamp)
Smin=3mm * 3mm (two needle probe or clamp)
Smin=2mm * 2mm (single needle probe)
3. Probe parameters:
Probe spacing: 1.8mm
⑵ Probe type: three needle, two needle, single needle, clamp type
4 working power supply: 220V ± 10%, f=50Hz ± 4%, PW ≤ 5W
5 Overall dimensions: W × H × L=28cm × 13cm × 23cm
Net weight: ≤ 2kg
4、 For details, please visit the official website of Suzhou Lattice Electronics Co., Ltd http://www.jgdz.com.cn
Refer to the Technical User Manual for ST-11A Conductivity Type Identification Instrument
